Leadtech Printer-Leading Manufacturer in the Coding & Marking Industry since 2011.

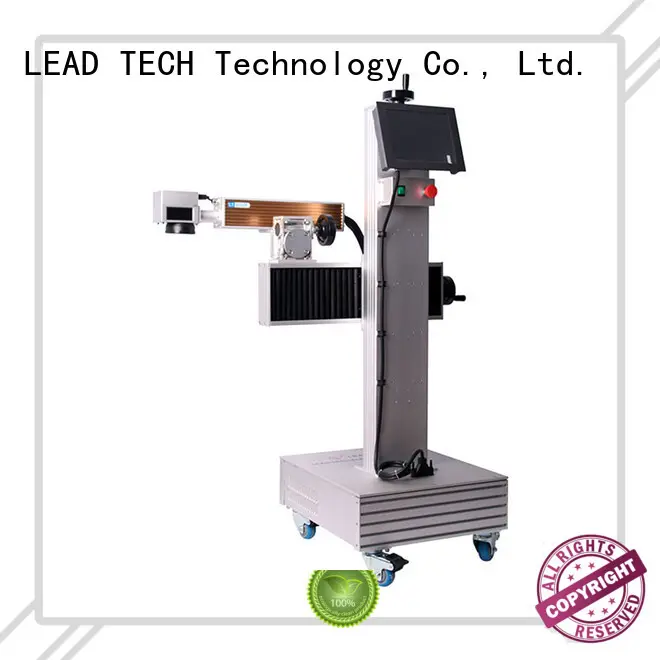

LEAD TECH dustproof laser marking machine high-performance at discount
1. High quality raw materials are used in LEAD TECH jet laser printer to ensure the safety of this product.
2. This product enjoys a long service life. The rust-resistant metal construction protects it against water or moisture corrosion.
3. By expanding sales network, LEAD TECH has developed many trustworthy partners around the world.
4. The success of LEAD TECH can not be achieved without the efforts of all the staff.
Company Features
1. With a proud history of innovation and focuses on providing exceptional jet laser printer , LEAD TECH Technology Co., Ltd. has become one of the most competitive manufacturers.
2. The use of the laser coding machine technology has significantly improved quality and capacity of laser marking machine .
3. LEAD TECH believes it is important to take the scientific development as the basis during the production. Welcome to visit our factory! Promoting the improvement of laser etching printer for the work is the goal for LEAD TECH. Welcome to visit our factory! Please contact us any time when you need our batch code printer. Welcome to visit our factory!
laser mark machine can mark logo, character, serial number, bar code, data matrix on both metals and some non-metals.
Metals and alloys (carbon steel/mild steel, stainless steel, aluminum, copper, magnesium, zinc, etc.), rare metal and alloy steel (gold, silver, titanium, etc.) and some non-metal (plastic, PMMA, etc.), special surface treatment (aluminum anodized, plating surface, surface oxygen breaking of aluminum and magnesium alloy).
Electronic components, IC, electrical appliances, mobile phones, plastic buttons, color paper, food packaging, clocks and watches, molding, gaskets and seals, bearing, auto parts, hardware, tools, building materials, PVC tubes.
https://youtu.be/E-MVZaX-WMU
https://youtu.be/z9gYToqvz9M
https://youtu.be/tzBkPZEWtkI
https://youtu.be/qMDMENp7Hjk
https://youtu.be/6-fnF36cwro
Features:
- Pulse fiber laser source; long lifetime (100,000 hours/around 22 years if 12 hours' working time per day); without consumables; cost effective
- Professional and powful control system. It can mark logo, character, serial number, bar code and data matrix on both metals and some non-metals. It can meet different marking requirements.
- English operation interface with easy operation.
- Fast marking speed; high marking precision
- Permanent marking, won't be wiped out by sun or rain, convenient to trace.
Specifications:
Wavelength | 1064nm |
Fiber Laser Source | IPG; Raycus; JPT; Max (optional) |
Laser Power | 10W; 20W; 30W; 50W; 60W (optional) |
Marking Area | 110mmx110mm; 200mmx200mm; 300mmx300mm (optional) |
Min. Line Width | 0.03mm |
Min. Character Size | 0.5mm |
Marking Speed | ≤16000mm/s |
Pulse Width | ≤60us |
Repetition Positioning Accuracy | 10urad |
Laser Type | Pulse Laser |
Laser Mode | Single Mode |
Positioning Mode | Red Beam |
Cooling Way | Air Cooling |
Power Supply | Single Phase AC 220V, 50/60Hz |
Configurations:
1 | Laser Source(IPG/Raycus/JPT/Max 10W/20W/30W/50W/60W) |
2 | Scan Head (high speed scan head, adopting SCANLAB technology) |
3 | Field Lens (F160, F254, F290, F330, F420) |
4 | Operation System(WIN XP/7/8/10 English Version) |
5 | Marking Software(EZCAD, Engish Version) |
Weight: 136kg.
We have 3 layers package for every laser mark machine. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag.
Q: How to Install the machine?
A: After receive our machine, customers do not need to install it and can use it directly.
Q: How to operate the machine? is training necessary?
A: The machine is mainly controlled by software. It’s very easy, not complicated. Before shipment, we will make a simple operation manual with pictures and provide user manual of software. Generally speaking, an operator, who is not familiar with Fiber Laser Mark Machine before can still operate it very well. According to customers’ requests, we can send our technician to customer’ plant for machine training or customers can come to our plant for machine training if needed.
Q: What's the warranty?
A: We provide two years machine warranty. During the two-year warranty, in case machine exists problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall within our warranty list. After the warranty, we still provide lifetime service.
Q: What’s delivery time?
A: Generally speaking, lead time is 5-7 working days after receive the payment.
Q: Can we add a protection cover?
A: Yes, we can add a protection cover if you need. We can customize the design as customers’ requests.
Q: Is there any technical support in case any machine problem?
A: Yes, for any machine issues, we'll solve the problem through email, skype, phone or video. If the problem still exists, we'll send our technician to customer's plan for machine repair. We'll respond customer's question within two hours.
