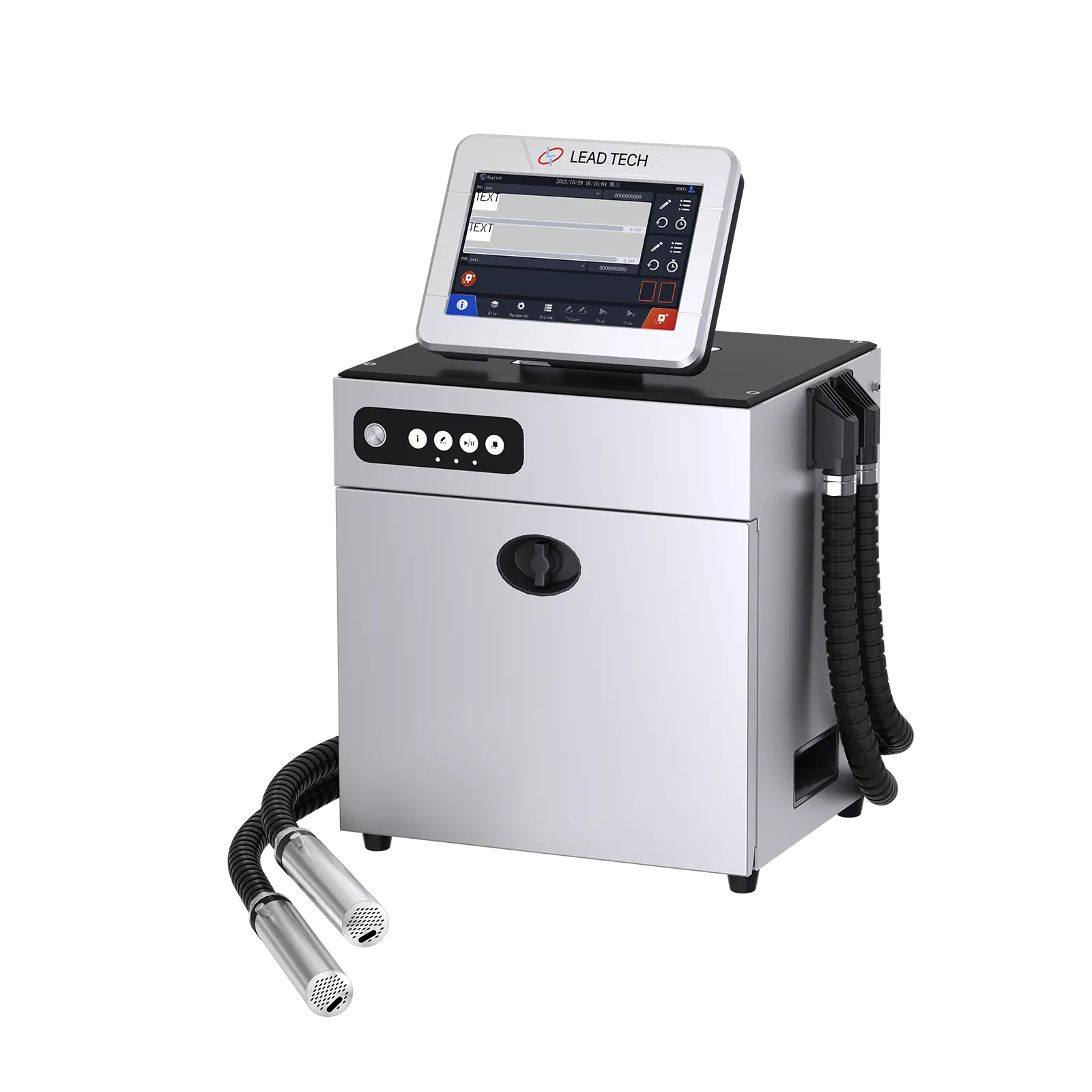

LEAD TECH i9 Dual Head CIJ Printer
| Model | LEAD TECH i9 dp Dual Head Inkjet Printer |
| Material | Stainless steel |
| Printing Performance | 1-4 Lines(7X5matrix), 1-5 Lines(5X5 matrix), Max. speed=344m/mind5X5 |
| Font Matrix |
Single-Line:5X5,7X5,9x6,12X8,16X11,19X14,24X17,32X22 Twin-Line:5X5,7X5,9x6,12X8,16X11 3 Lines:5X5,7X5,9x6 4 Lines:5X5,7X5 5 Lines:5X5 |
| Printing Distance |
Font Height:1-12mm (Depending on font) Printing distance:2mm to 30 mm, Best : 10mm |
| Operating System | LT-Touch unique System, Multiple Languages |
| Print Content | English, Chinese, Arabic Numbers, serial number. Bar code, Shift, DM/QR Code, UPC A&E,GS1, logo. EAN 8 & 13, UCC/EAN 128,Code 128 A, B & C. Code 39, Code 125, automatic date/time/expiry date, special characters, etc. |
| Extra Memory | USB, RS485, RS232, BCD, Ethernet |
| System Language | Chinese,English,Korean,Russian,Polish, Persian,Arabic,Spanish,German, Indonesian, Vietnamese, Croatian, Thai, Slovenian, Slovak, Bosnian, Portuguese, Italian,etc,customizable language |
| Memory Storage | 1000+Messages |
| Industrial Protection | IP55 |
| Printhead | Super soft, length 3m, constant temperature, 60μm |
| Printing Direction | 360° All-round printing |
| Cartridge Volume | Ink (750ml), Make-up (750ml) |
| Temperature/ Humidity range |
0-45 ℃ 0-95% Relative Humidity, Non-condensing |
| Power | 100-120/200-240V~ , 50-60Hz ,150W |
Friendly User Interface
10.4 inch Touch Screen
Quick Startup (57 seconds)
One Button Turn ON/OFF
Multiple Language Interface
Iot Industry 4.0
RS485, USB & Ethernet Connections
Support Data Matrix & QR Code Printing
Remote Upgrade of Software & Firmware
New Generation Printhead
Innovative Printhead with Twin-valves
Injection Molding Technology to Prevent Ink Leakage
Auto-cleaning to Ensure Longer Uptime
Stable Ink System
Auto Filling Startup
More Stable Pressure
Durable InkCore Design, Easy to Replace
Auto Modulation Function without Adjust Manuall
| Model |
i9 dp |
|
|
| Material | Stainless steel | Stainless steel+Precision coating | |
| Printing Performance |
1-4 Lines(7X5matrix) 1-5Lines(5X5 matrix) Max. speed=344m/min@5X5 |
1-4 Lines(7X5matrix) 1-5 Lines(5X5 matrix) Max. speed=430m/min@5X5 |
1-4 Lines(7X5matrix) 1-5 Lines(5X5 matrix) Max. speed=537m/min@5X5 |
| Font Matrix |
Single Line:5X5,7X5,9x6,12X8,16X11,19X14,24X17,32X22 3 Lines: 5X5,7X5,9x6 5 Lines: 5X5 Twin-Line:5X5,7X5,9x6,12X8,16X11 4 Lines:5X5,7X5 |
||
| Printing Distance |
Font Height:1-12mm (Depending on font) Printing distance:2mm to 30 mm Best : 10mm |
Font Height:1-15mm Printing distance:2mm to 30 mm Best : 10mm |
Font Height:0.86-12mm Printing distance:2mm to 30 mm Best : 10mm |
| Operating System | LT-Touch unique System, Multiple Languages | ||
| Print Content |
English, Chinese, Arabic Numbers, serial number. Bar code, Shift, DM/QR Code, UPC A&E,GS1, logo. EAN 8 & 13, UCC/EAN 128,Code 128 A, B & C. Code 39, Code 125, automatic date/time/expiry date, special characters, etc. |
||
| Extra Memory | USB.RS485,RS232,BCD.Ethernet | ||
| System Language | Chinese,English,Korean,Russian,Polish, Persian,Arabic,Spanish,German, Indonesian, Vietnamese, Croatian, Thai, Slovenian, Slovak, Bosnian, Portuguese, Italian,etc,customizable language | ||
| Memory Storage | 1000+Messages | ||
| Industrial Protection | IP55 | IP55, IP65 (Option) | |
| Printhead |
Super soft, length 3m constant temperature,60μm |
Super soft, length 3m constant temperature,50μm |
Super soft, length 3m constant temperature,40μm |
| Printing Direction | 360° All-round printing | ||
| Cartridge Volume |
Ink (750ml) Make-up (750ml) |
||
| Temperature/ Humidity range |
0-45 ℃ 0-95% Relative Humidity, Non-condensing |
0-50 ℃ 0-95% Relative Humidity, Non-condensing
|
|
| Power | 100-120/200-240V~ , 50-60Hz , 1.1 - 0.55A , 150W | 100-120/200-240V~ , 50-60Hz , 1.1 - 0.55A , 120W |
|
