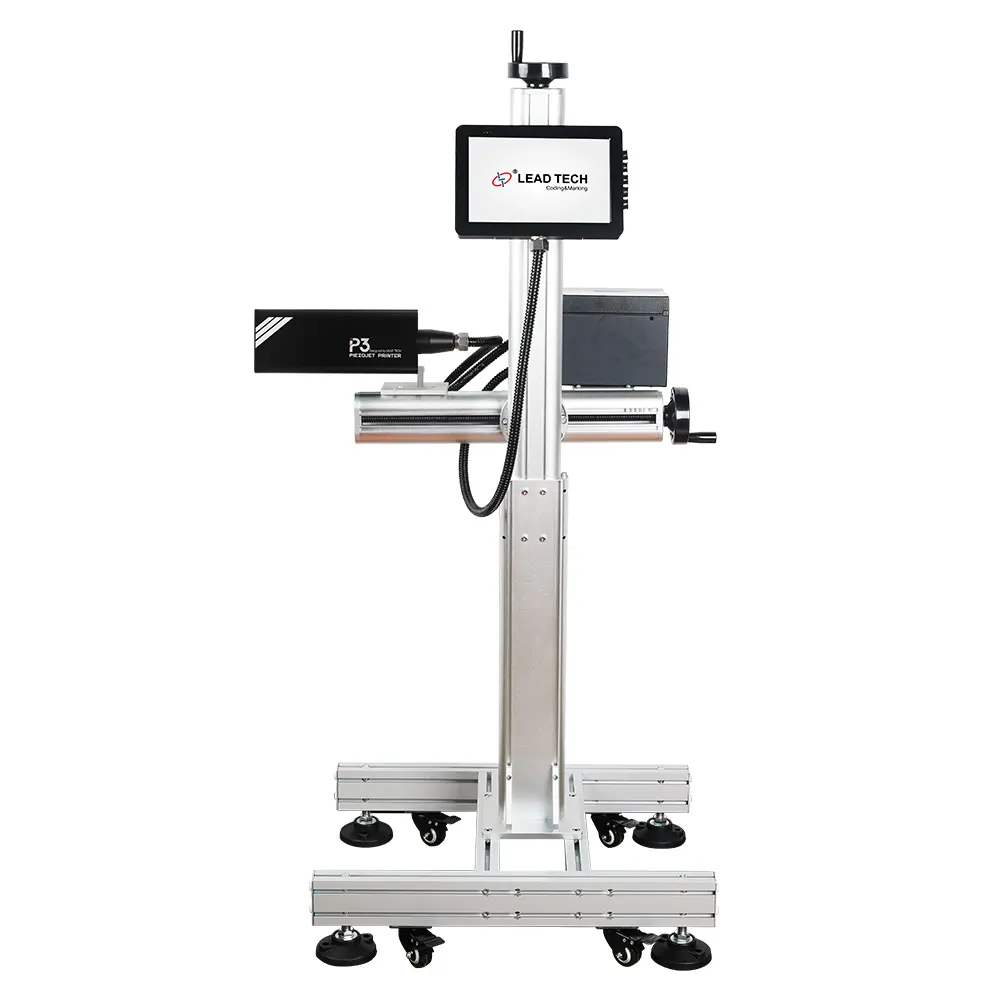

LEAD TECH P3 Piezo Jet Printer
Your ideal Box Coding Solution
◎ Low Cost
◎ No Mess
◎ Accurate Codes
◎ Easy to Operate
◎ Low Maintenance
| Item | LEAD TECH P3 Piezo Jet Printer |
| Printhead Type | Konica(KM512) |
| Operation System | Android operation system |
| Print Speed | Max.55 m/min |
| Print Distance | 3-5mm |
| Print Resolution | Vertical:360 DPI Horizontal:180 DPI |
| Print Height | 36mm |
| Ink System | Siphon Ink Supply |
| I/O Ports | 4 Ports for Printhead, Alarm Light, Encoder and Sensor ,USB port and Ethernet port |
| Printer Screen | 10.2inchindustrial touch screen |
| Power | 110-240V, DC24V 5A |
| System Language | English, Chinese, Russian, Spanish, Portuguese, Arabic, Korean, Japanese and otheranguages can be upgraded* |
| Print Message | Text, Variable Text, Date, Time, Shift, Counter, Database Text, Barcode, Graphics, Tablesand QR Codes |
| Support Database Type | TXT, Excel, Access,SQL Server |
| Installation | Sideward and Downward rinting with standard bracket Optional Precise Adjustable Bracket |
| Ink Type | Oil based and UV Ink |
| Ink Management | Auto-identify lnk Type and Confirm Optimal Parameters; Auto-calculate lnk Consumption |
| Working Temperature | 59F(15°C)-104F(40°C) |
| Storage Temperature | 41°F(5°C)-113°F(45°C) |
| Printhead Specification | 290mmx90mmx70mm |
| Net Weight | 1Kg |
Smart Controller
Lead Tech P Series PIJ (Pizeo inkjet) high resolution inkjet printer has options to connect with Konika 512 (P3), Ricoh MH5420 (P5) and Seiko 510 (P7) to printhead individually. Also has option to connect with UV curing system for non-porous substrates applications.
Various I/O Ports
Support RS485, Ethernet and USB port to achieve the transmission of various types of data automatically, easy for system integration.
Friendly User Interface
◎ 10 inch industrial touch screen, based on Android operation interface for quick message editing quickly and printing.
◎ Support multiple languages, fonts and graphics in various formats.
Constant Ink Supply
Precise ink output control, greatly reduce the consumable cost, no stop time for ink changeover, change ink, maximize running time and improve product efficiency.
Stable Ink Supply System
◎ Stable ink supply system with siphon method, suitable for both UV ink and oil based ink.
◎ One button flush, ink low alarm, constant temperature heat system ensures printer stability and reliability.
Flexible Installation
◎ Modular design equipment enables convenient installation at customer’s plant.
◎ Printhead is adaptable for both sideward and downward printing.
Printing Variable Data
Support variable data printing at real-time, includes barcode, QR codes, date/time, shift, counter, graphics, tables and databases...etc.
UV LED Curing System
◎ Optional UV Curing System
◎ UV ink with UV Curing System suitable for non-porous applications
◎ UV Curing System with air cool and water cool options
◎ Fast curing speed, improve product efficiency
Video
| Item |
P3 Piezo Jet Printer |
|
|
| Printhead Type | Konica(KM512) | RICOH(MH5420) | SEIKO(510) |
| Operation System | Android operation system | ||
| Print Speed | Max.55 m/min | Max.260 m/min | Max. 55 m/min |
| Print Distance | 3-5mm | ||
| Print Resolution | Vertical:360 DPI Horizontal:180 DPI | Vertical:150/300/600 DPI Horizontal:150/300/600 DPI |
Vertical:180 DPI Horizontal:180/360 DPI |
| Print Height | 36mm | 54mm | 71.8mm |
| Ink System | Siphon Ink Supply | ||
| I/O Ports | 4 Ports for Printhead, Alarm Light, Encoder and Sensor ,USB port and Ethernet port | ||
| Printer Screen | 10.2inchindustrial touch screen | ||
| Power | 110-240V, DC24V 5A | ||
| System Language | English, Chinese, Russian, Spanish, Portuguese, Arabic, Korean, Japanese and otheranguages can be upgraded* | ||
| Print Message | Text, Variable Text, Date, Time, Shift, Counter, Database Text, Barcode, Graphics, Tablesand QR Codes | ||
| Support Database Type | TXT, Excel, Access,SQL Server | ||
| Installation | Sideward and Downward rinting with standard bracket Optional Precise Adjustable Bracket | ||
| Ink Type | Oil based and UV Ink | ||
| Ink Management | Auto-identify lnk Type and Confirm Optimal Parameters; Auto-calculate lnk Consumption | ||
| Working Temperature | 59F(15°C)-104F(40°C) | ||
| Storage Temperature | 41°F(5°C)-113°F(45°C) | ||
| Printhead Specification | 290mmx90mmx70mm | 355mm x135mm x58mm | 260mm x135mm x58mm |
| Net Weight | 1Kg | 1.2Kg | 1Kg |
